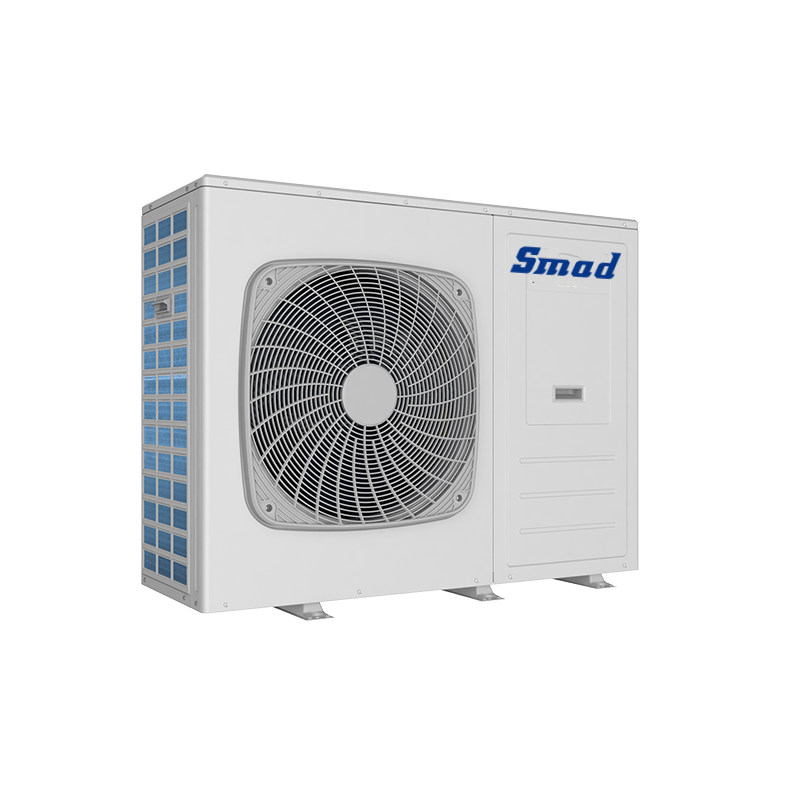

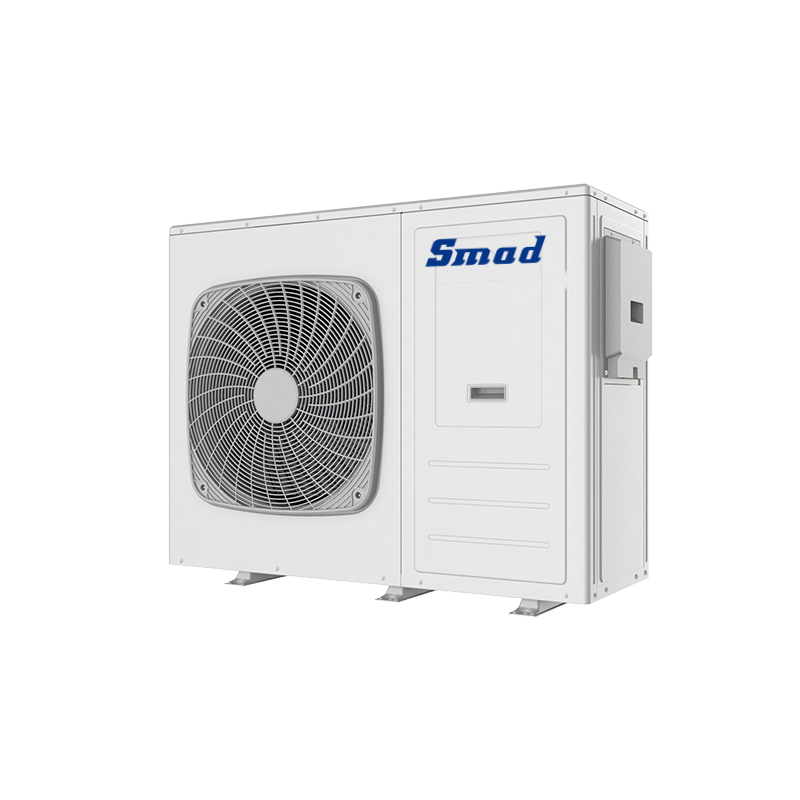

> Smad Air Source Inverter R290 Heat Pump Heater

ANY QUESTIONS? TEL:+8653286101152 | EMAIL: info@smad.com.cn

Get Free Quote Today!!

We will contact you within 12 hours.

Benefits

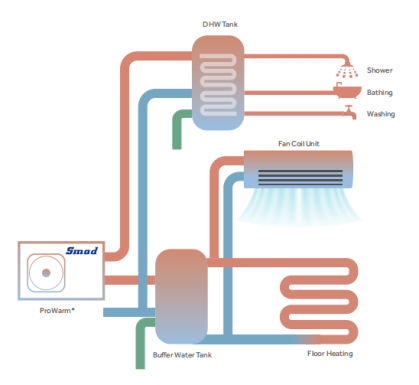

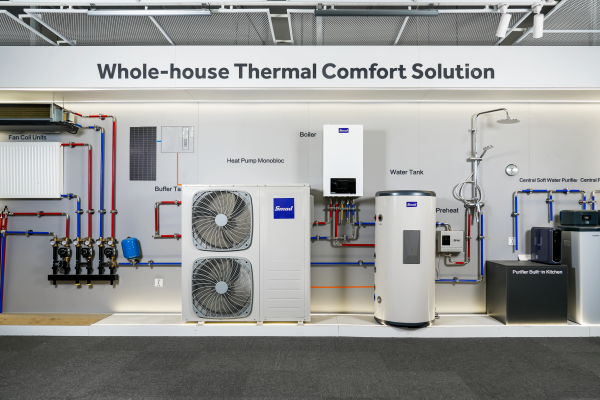

Smad ProWarm* is an integrated system that provides everything your home needs: heating, cooling, and domestic hot water. It is also the ideal alternative for traditional gas or fuel oil heating, allowing you to enjoy delightfully warm and perfectly hot water throughout the year.

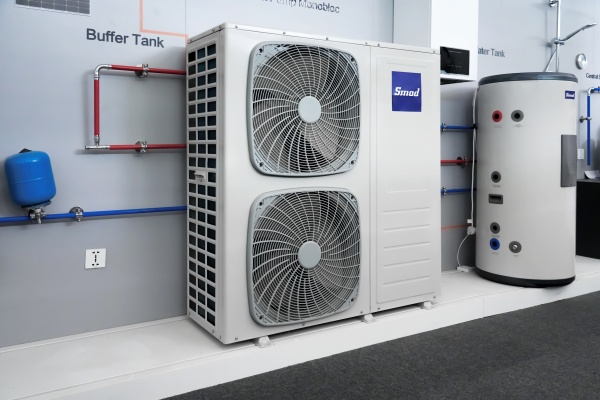

Smad Air Source Heat Pump with proWarm

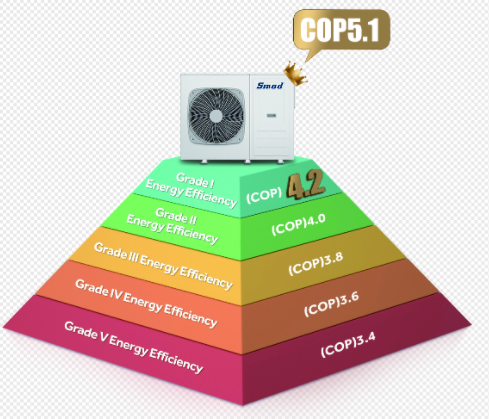

High efficiency means low energy costs, Smad ProWarm* can greatly reduce energy bills for users.Smad ProWarm* can extract free heat from the surrounding air to provide efficient heating, cooling, and domestic hot water for your home, saving up to 80% energy.Heating system efficiency is measured by the Coefficient of Performance (COP). Thanks to the use of high efficiency inverter compressor, the COP is as high as 5.1.


Smad Air Source Heat Pump with high efficiency

The machine can run at low frequency in the lowest noise mode to ensure the quality of life of consumers, create a quiet and comfortable living environment, and ensure the sleep, rest and work of consumers.Entering low-frequency operation mode at night can both improve energy efficiency and ensure a quiet and undisturbed environment.When reaching the set temperature, the units automatically switch into low frequency cruise mode, and the volume is only 48dB, just as the sound of opening books in the library, which supplies you the most comfortable and quiet environment.


Smad Air Source Heat Pump with Ultra low noise

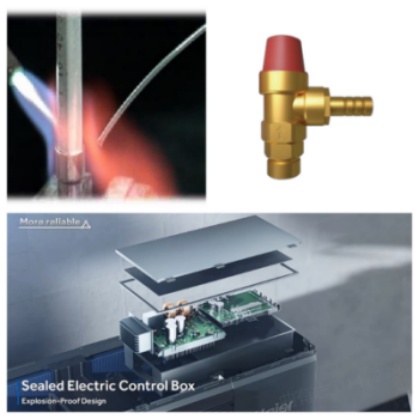

Safety performance: First of all, for the flammability of the refrigerant, we use silver brazing technology on the one hand to ensure solid welding and avoid leakage. Second, the safety valve can quickly discharge the refrigerant in the event of a leak, preventing the refrigerant from entering the water system and indoor space. In addition, the product has an independent electrical box, so that the electrical separation, to prevent refrigerant leakage and electrical collision release risk.


Smad Air Source Heat Pump with Safety performance

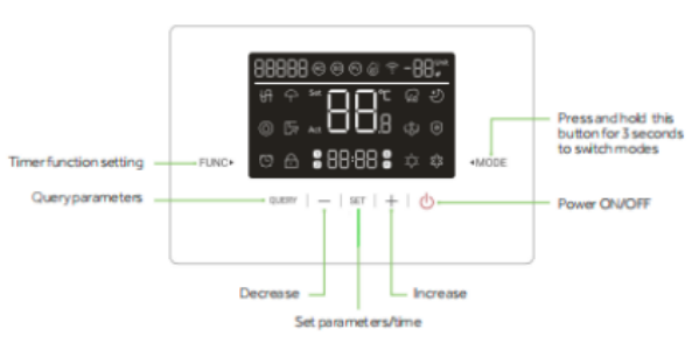

The r290 heat pump gives users a simpler interaction and a more intuitive experience. The elements and operation of the ui interface of this product are intuitive and easy to understand, and users can understand its meaning and usage without much thinking. The user can get timely feedback when performing operations, and the feedback can let the user know whether the operation is successful and understand the next operation.


Smad Air Source Heat Pump with UI operation interface

Specification

Model No. DFT-008CCH2E1-M; DFT-010CCH2E1-M; DFT-012CCH2E1-M
Power Supply(V/Ph/Hz) 220-240/1/50
Heating Capacity (AT7/6, WT30/35) 1.62~8kW; 2.08~10kW; 2.45~12kW
Heating Capacity(AT7/6, WT47/55) 2.42~8kW; 3.03~10kW; 3.43~12kW
Cooling Capacity(AT35, WT23/18) 1.63~8kW; 2.15~10kW; 2.78~11.4kW
ERP Level(Outlet water temp. at 35℃) A+++
MAX. input power 3.0kW; 5.5kW; 9.0kW
Refrigerant R290
Compressor DC inverter
IP Class IPX4
Operating temperature range (Heating mode) -30~35 °C
Operating temperature range (Cooing mode) 10~48 °C
Product Dimensions( D×W×H) 1362×567×1167mm
Packed Dimensions( D×W×H) 1362×567×1167mm
Net Weight 163/163/169 Kg
Gross Weight 171/171/177 Kg
40HQ 66/66/66 pcs
