The high-density micro-channel heat coils with multi-flow allow the refrigerant and the surface of the enamel water tank to have a large-area heat exchange, which highly improves the heat transfer efficiency. MicroChannel heat coil greatly enlarges the available contact surface between inner water tank and heat coil thus enhance the performance of heat pump water heater. The COP of this kind of unit can reach to 4.16.

Smad Heat Pump Water Heater All in One with Micro-Channel Heat Coil

R290 has a zero ODP value, which means that there is no negative impact on the ozone layer, and an extremely low GWP value, which indicates a minimal impact on the global-warming effect. This makes propane an environmentally friendly refrigerant, at the same time maintaining good working parameters in heat pump units. Smad all-in-one heat pump water heater uses R290 refrtigerant which is very environmentaly friendly and goes along with carbon nuetral trend. It is undoubtedly a trendly water heating solutons for household applications. This furture oriented heat pump water heater can be used for light commercial and families hot water demand.

Smad Heat Pump Water Heater All in One with R290 Refrigerant

During water heating, the all in one series can automatically calculate and analyze its current operating conditions, then adjust the power input to achieve an optimal COP .Under ideal conditions, Smad R290 all-in-one heat pump water heater can achieve a high COP of up to 4.16, which can significantly help to reduce energy consumption and save the energy bills for users in the long run. The excellent energy-saving effect makes the water heater stand out from the normal water heaters in the market.

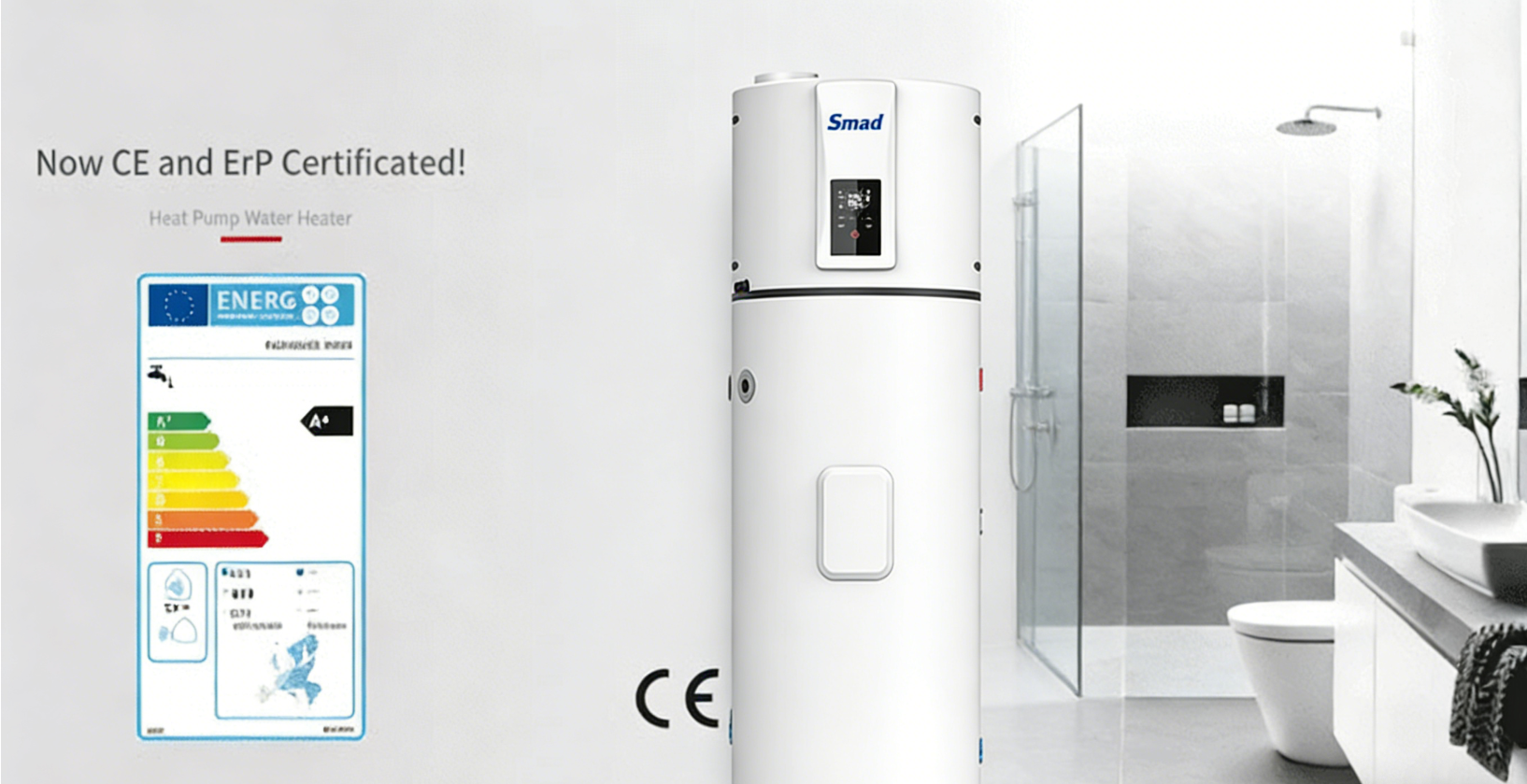

Smad Heat Pump Water Heater All in One with COP 4.16

With the advanced technology of tranquil water flow, the production of the hot water can be raised and the heating efficiency can be higher than that without.

Smad Heat Pump Water Heater All in One with Tranquil Flow Technology

The enamel coating design makes the welding line of steel plate separated with water, so it has no risk of corrosion, scaling, leakage, etc. Thus, the water tank is of high pressure and fatigue resistance which passes 250,000 times pulse test.

Smad Heat Pump Water Heater All in One with Enamel Water Tank

Smad R&D Department has optimized the noise control solution time and again by conducting countless noise experiments on the all in one series, whose noise is as low as 48 dB(A), ensuring a peaceful home environment. One of the key noise reduction technology shoudl be the brush-less DC motor which is quieter than a conventional AC motor, which means that users can have a better using experience.

Smad Heat Pump Water Heater All in One with Stable Silent Operation

The water heater comes with an inbuilt touch LCD display. It is very user friendly and boast a range of operation modes and settings to ensure the lowest energy consumption.

Smad Heat Pump Water Heater All in One with User-friendly Controller


Model No. DTS-200CSE1; DTS-250CSE1; DTS-300CSE1
Water tank volume(L) 200 / 250 / 300L
Working temperature range -7~43 ℃
Power Supply 220V/1/50Hz
Heating Capacity(Air 20℃/15℃, Water Temperature from 15℃ to 55℃) 2.5 kW
Power Input(kW) 0.6 kW
COP 4.16
Max Power Input(kW) 3 kW
Refrigerant R290
Noise level 1m dB(A) 48 dB(A)
Product Dimensions( L×D×H ) Φ620×1750; Φ620×1850; Φ620×1950 mm
Packed Dimensions ( L×D×H ) 700×700×1930; 700×700×2030; 700×700×2130 mm
Net Weight 88 / 95 / 102 Kg
Gross Weight 106 / 113 / 120 Kg
40HQ 51 pcs
