120/150L Square All in One Heat Pump Water Heater

Model : DCS-120CSE1; DCS-150CSE1
Color : White, Grey, Customizable

● R290 refrigerant, environmentally friendly.

● Higher water temperature output up to 75℃.

● High COP up to 4.2

● Micro-Channel Heat Coil

● Adopt enamel inner tank.

● Stepless Full Inverter Technology.

● Defrost automatically.

● With sterilization function.

● Stable Silent Operation.

● With auxiliary electric heater.

● Top air in/out with duct, free of cool air.

● Simple style, modern square appearance.

● Large screen, touch button.

Get Exclusive Quote !!

Benefits

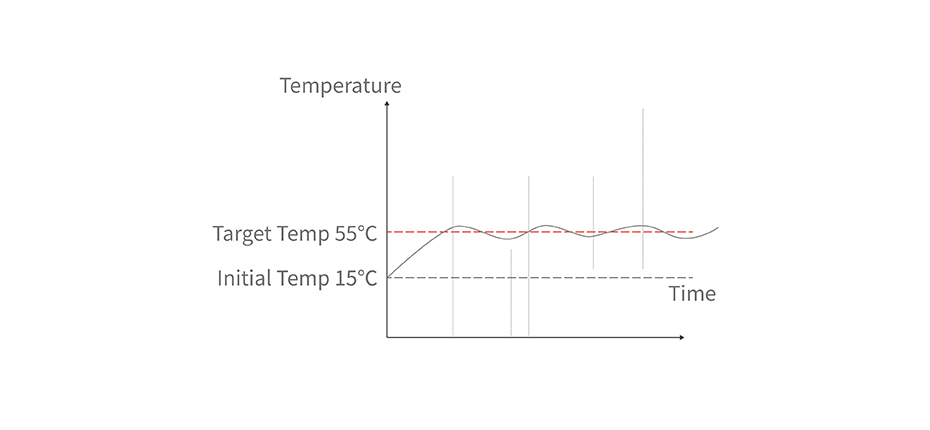

The Smad All in One Hot Water Heat Pump can perform step-less frequency conversion in a wide range of 30Hz-70Hz, thereby adapts to complex and changeable environmental conditions and accurately controls the water temperature, to meet the diﬀerent comfort requirements.

Smad Air to Water Heat Pump Water Heater All in One with Stepless Full Inverter Technology

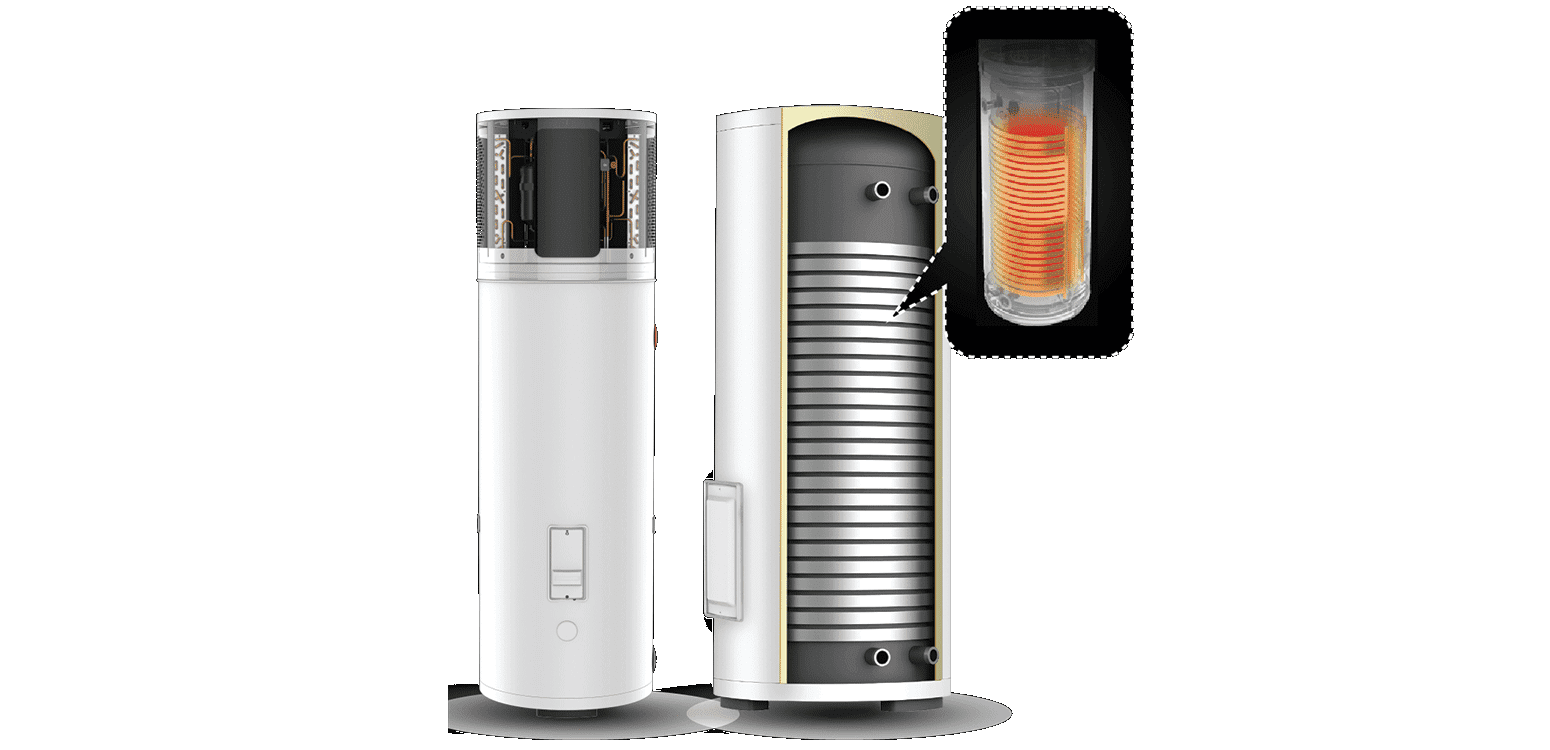

The high-density micro-channel heat coils with multi-flow allow the refrigerant and the surface of the enamel water tank to have a large-area heat exchange, which highly improves the heat transfer efficiency.

Smad Air to Water Heat Pump Water Heater All in One with Micro-Channel Heat Coil

During water heating, the all in one series can automatically calculate and analyze its current operating conditions, then adjust the power input to achieve an optimal COP of up to 4.2. The excellent energy-saving effect makes it stand out from the other water heaters.

Smad Air to Water Heat Pump Water Heater All in One with High COP up to 4.2

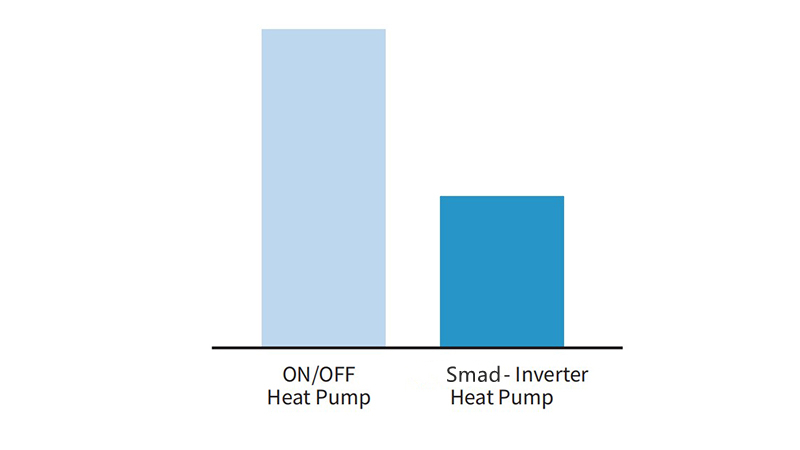

Compare to the ON/OFF heaters, the inverter heater can save more than 50% power in the daily running. Consumers can enjoy fast water heating and energy saving at the same time.

Smad Air to Water Heat Pump Water Heater All in One is Energy Saving

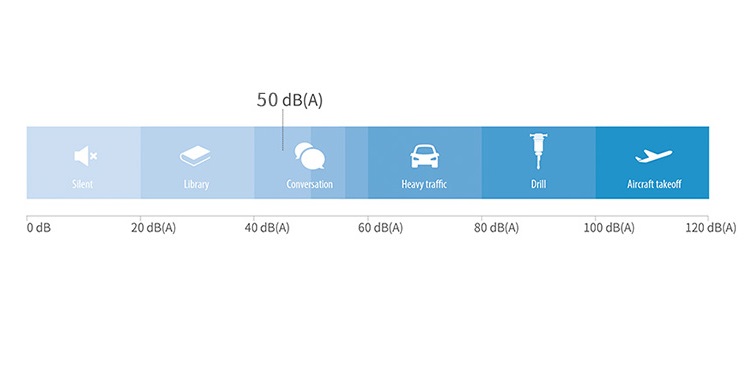

Smad R&D Department has optimized the noise control solution time and again by conducting countless noise experiments on the all in one series, whose noise is as low as 48 dB(A), ensuring a peaceful home environment.

Smad Air to Water Heat Pump Water Heater All in One with Stable Silent Operation

Specification

Model No.	DCS-120CSE1; DCS-150CSE1
Water tank volume(L)	120 / 150L
Power Supply	220V/1/50Hz
Working temperature range	-7～43 ℃
Heating Capacity(Air 20℃/15℃, Water Temperature from 15℃ to 55℃)	2.5 kW
Power Input(kW)	0.6 kW
COP	4.16
Max Power Input(kW)	3 kW
Refrigerant	R290
Noise level 1m dB(A)	48 dB(A)
Product Dimensions( L×D×H )	500×500×1550; 500×500×1670 mm
Packed Dimensions ( L×D×H )	640×640×1720; 640×640×1840 mm
Net Weight	89 / 92 Kg
40HQ	54 pcs
